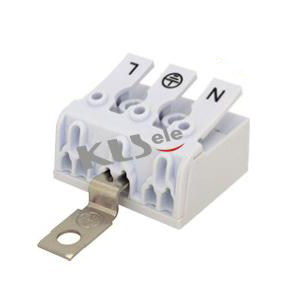

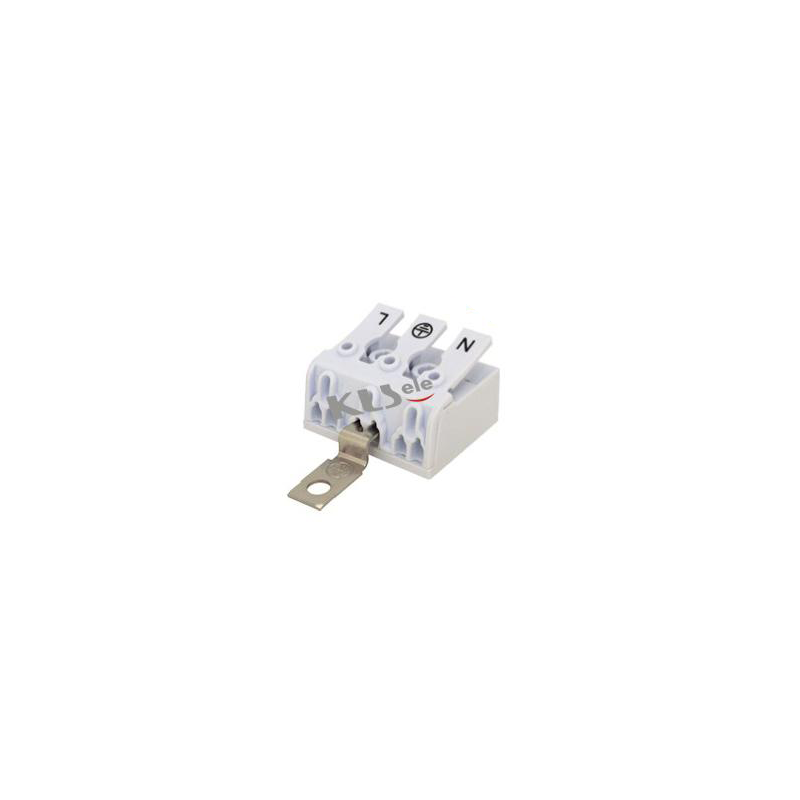

Клеммник KLS2-238-03P (L-KLS2-238K-03P-AB)

Material
Housing:  PA66, UL94V-0
Wire guard :Stainless steel
Contact :Copper

The electrical parameters
Rated voltage:  400V
Rated current:  24 A
Contact resistance:  20 mΩ
Insulation resistance:5000MΩ/DC1000V
Withstanding voltage :   AC2500V/1 min
Wire range:  22-14 AWG, 0.75-2.5mm2
Ambient temperature :  -40°C~+105°C
Strip length :  7-7.5 mm
Pitch :10.0mm
Poles:2P-3P
